Pan Tilt Zoom Camera

Capture Every Detail, Even in the Darkest Nights

With our SureVision 5MP IP Pan Tilt Zoom security camera, you can ensure that your space is protected day and night. Equipped with exceptional 164-foot night vision, this camera captures crystal-clear video in the darkest settings. Don’t let the darkness compromise your security—our infrared technology ensures every nook and cranny is monitored for peace of mind.

Seamless Interaction and Enhanced Security

Introducing the power of two-way audio to bolster your security. This SureVision PTZ not only provides top-tier video surveillance but also features an integrated mic and speaker, so you can greet visitors or warn intruders straight from your phone, tablet, or computer.

360° Panning and Precision Zoom

Pan a full 360° with ease—no blind spots, no missed details. A 5× optical zoom lets you hone in on distant activity without losing clarity. One of the latest features is Auto Tracking, where the camera automatically follows moving subjects so critical activity is captured and recorded.

Looking for a Complete System?

Build a professional SureVision system with NVR, cameras, and accessories—full-featured software with No Monthly Fees.

Shop Systems

Looking for an NVR?

Pair your PTZ with a SureVision NVR for 24/7 recording, remote viewing, and easy management—No Monthly Fees.

Shop NVRs

5MP PTZ 360° 5× Optical Zoom 164ft IR Two-Way Audio Auto Tracking IP66 PoE / PoE+ No Monthly Fees

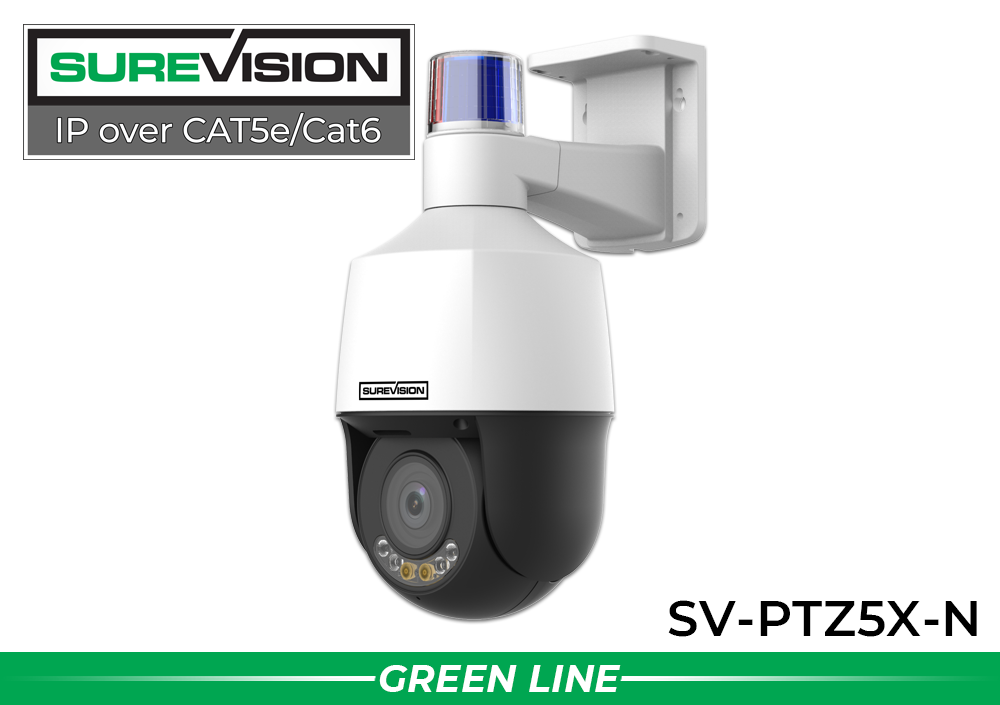

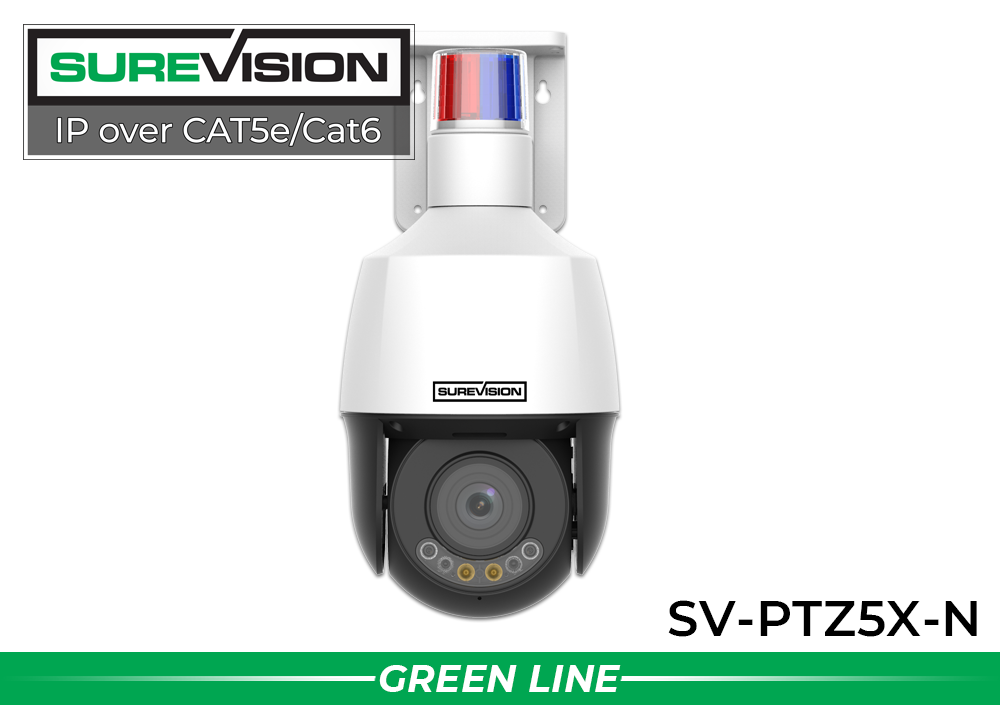

Quick Specs — SureVision 5MP IP PTZ

Resolution	5MP (2880×1620) @30fps
Lens / Zoom	2.7–13.5mm Motorized, 5× Optical / 16× Digital
IR Night Vision	Up to 164ft (50m), 850nm, Auto/Manual
Pan / Tilt	Pan 0–345° (up to 50°/s), Tilt –10–100° (up to 40°/s)
Audio	Two-Way Audio, Built-in Mic & Speaker
AI & Events	Auto Tracking, SIP, People Counting, UMD, Smart Alerts
Compression	Ultra 265 / H.265 / H.264 / MJPEG
Storage	MicroSD up to 512GB; ANR, NAS (NFS)
Power	DC12V, PoE (IEEE 802.3at), Max 18W

Full Technical Specifications

TECHNICAL SPECIFICATIONS
Camera
Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Min. Illumination	Color: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120dB
S/N	>56dB
Lens
Type	2.7 ~ 13.5mm AF motorized zoom
Digital Zoom	16×
Optical Zoom	5×
Iris	Fixed; F1.2
FOV (H/V/O)	106.9°–30.6° / 56°–17.7° / 131.5°–36.1°
DORI
DORI Distance	Lens (mm)	Detect	Observe	Recognize	Identify
	2.7	71m (232.5ft)	28m (93ft)	14m (47ft)	7m (23ft)
	13.5	248m (812ft)	99m (325ft)	50m (162ft)	25m (81ft)
Illuminator
IR Range	Up to 50m (164ft)
Wavelength	850nm
IR Control	Auto / Manual
Video
Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main: 5MP (2880×1620) @30fps; Sub: 720p @30fps; Third: D1 @30fps
Bit Rate	128 Kbps ~ 16 Mbps
ROI / U-Code	Supported / Supported
Streams / OSD	Triple Streams / Up to 8 OSDs
White Balance	Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
DNR / Smart IR	2D/3D DNR / Supported
Flip	Normal, Vertical, Horizontal, 180°
HLC / BLC	Supported / Supported
Defog	Digital Defog
Events & AI
Basic	Motion, Tampering, Audio, Object Removed/Left, Scene Change, Defocus
Auto Tracking	Supported (target filtering: human)
People Counting	Flow Counting & Crowd Density
SIP	Cross Line, Intrusion, Enter/Leave Area (human/vehicle filtering)
Audio
Compression / Bitrate	G.711U/G.711A / 64 Kbps
Two-Way / Suppression	Supported / Supported
Sampling Rate	16 kHz
Storage
Edge / Network	MicroSD up to 512GB / ANR, NAS (NFS)
Network
Protocols	TLS1.3, SSH, IGMP, RTP/RTCP, SMTP, IPv4/IPv6, ICMP, ARP, TCP/UDP, DHCP, PPPoE, RTSP/RTMP, DNS/DDNS, NTP, FTP, UPnP, HTTP/HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Integration	ONVIF (S/G/T/M), API, SDK
Users	Up to 32 users (Admin / User)
Security	Strong password, HTTPS/TLS, Basic/Digest (RTSP/HTTP), WSSE, logs
Client	GuardStation, SVTools
Web Browser	IE 10+, Chrome 45+, Firefox 52+, Edge 79+ (plug-in may be required)
Pan & Tilt
Pan / Speed	0°–345° / 1°–50°/s (50°/s preset)
Tilt / Speed	–10°–100° / 1°–40°/s (40°/s preset)
Presets / Patrol	1024 presets; 16 patrols (up to 64 presets each)
Patrol Dwell	120s–1800s; Home Position supported
Interface
Audio I/O	1 In (1kΩ, 2.5V p-p), 1 Out (600Ω, 2.5V p-p)
Alarm I/O	1/1
Serial	N/A
Built-in Mic / Speaker	Supported / Supported
Network	1 × RJ45 10/100M Ethernet
Certification
EMC	CE-EMC (EN 55032, EN 50130-4, EN 61000-3-3, EN IEC 61000-3-2)
Safety	CE LVD (EN 62368-1); UL (UL 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863)
Protection	IP66 (IEC 60529)
General
Power	DC12V (±25%), PoE (IEEE 802.3at); Max 18W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (L × W × H)	185 × 133 × 286mm (7.3" × 5.2" × 11.3")
Weight	1.32 kg
Working Env.	-30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH (non-condensing)
Storage Env.	-40°C ~ 70°C (-40°F ~ 158°F), ≤95% RH (non-condensing)
Surge / Reset	2kV / Supported
Web Client Language	22 Languages incl. English, Spanish (EU/LatAm), French, German, Italian, Portuguese (EU/BR), Russian, Arabic, Korean, Japanese, Vietnamese, etc.

SECURITY CAMERA FEATURES

Security Camera - 5 MP PTZ (2880 x 1620)
2.7-13.5mm Motorized Lens - 5X Optical Zoom
Up to 164ft Infrared Night Vision with White LED
Active Deterrence (Siren and Lights)
Easy Auto Tracking
Built-in Microphone and Speaker
Starlight - low light performance
H.265 Video Compression
Weatherproof IP66
Wide Dynamic Range (120dB)
Measurement: 11.3" H x 5.2" D

Approximate Distances:
Identify (Up to 81ft)
Recognize (Up to 163ft)
Detect (Up to 812ft)
